What are the main components of an injection molding machine?

Injection molding machines are indispensable equipment in the plastic processing industry, which produce various plastic products through precise control of the heating, melting, injection, cooling, and other processes of plastic materials. Here are the main components of injection molding machines, along with an introduction to our company, Chuanghui.

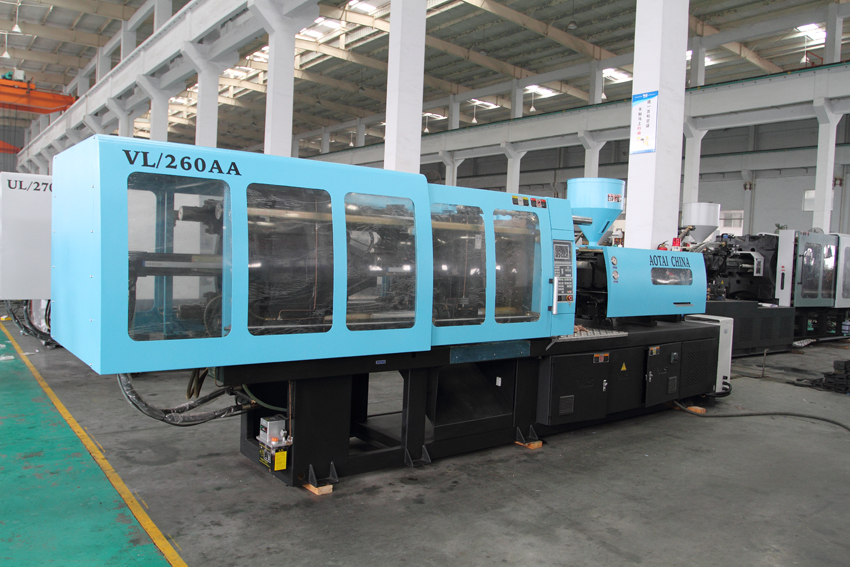

Main Components of Injection Molding Machines

1. Injection System:

   • The injection system is one of the core parts of the injection molding machine, responsible for transporting plastic raw materials from the hopper to the injection cylinder, and heating and plasticating them. This system consists of a hopper, feeder, barrel, screw, and nozzle, which directly affect the precision and efficiency of the injection molding machine.

2. Clamp System:

   • The clamp system is responsible for closing and opening the mold and ejecting the product. At the same time, after the mold is closed, it provides enough clamping force to resist the cavity pressure generated by the molten plastic entering the cavity, preventing the mold from opening and causing defects in the product.

3. Hydraulic System:

   • The hydraulic transmission system provides power for the various actions required by the injection molding machine according to the process requirements and meets the pressure, speed, temperature, and other requirements needed by various parts of the injection molding machine. It mainly consists of various hydraulic components and auxiliary hydraulic components, among which the oil pump and motor are the power sources of the injection molding machine.

4. Electrical Control System:

   • The electrical control system, in conjunction with the hydraulic system, can achieve the process requirements (pressure, temperature, speed, time) and various programmed actions of the injection molding machine. It mainly consists of electrical, electronic components, instruments, heaters, sensors, etc.

5. Heating/Cooling System:

   • The heating system is used to heat the barrel and injection nozzle, while the cooling system is used to cool the oil temperature and the mold, preventing deformation and shrinkage of plastic products, and improving production efficiency and reducing cycle time.

6. Lubrication System:

   • The lubrication system provides lubrication conditions for parts of the injection molding machine that have relative motion, such as the moving platen, mold adjustment device, and connecting rod hinge, reducing energy consumption and extending the life of parts.

7. Safety Protection and Monitoring System:

   • Safety devices are mainly used to protect the safety of people and machines. The monitoring system mainly monitors the oil temperature, material temperature, system overload, and process and equipment failures of the injection molding machine, indicating or alarming when abnormalities are found.

Ningbo Chuanghui Plastic Machinery Co., Ltd.

Ningbo Chuanghui Plastic Machinery Co., Ltd., located on the coast of the East China Sea, in Ningbo, known as the international plastic machine city, is a professional manufacturer of high-quality injection molding machines. The company's product range includes injection molding machines with clamping forces from 50T to 650T and injection volumes from 45 grams to 3000 grams, which meet the safety requirements of European plastic and rubber machinery. Our products have made significant progress in energy efficiency and environmental protection features, such as high energy efficiency ratio, intelligent energy-saving control, water and cooling time savings, environmentally friendly material application, and waste treatment and recycling. Choosing Chuanghui means obtaining injection molding machine equipment that meets international standards and is reliable in quality.
